Frangizolle carrellato idraulico Offset basic

Erpici frangizolle carrellato idraulico
Serie leggera FL

Mod.	HP	HP	Nr.	Diam. (cm)	Nr.	Largh. (cm)	Peso (Kg)
16 FL/56	50-60	30-50	16	56	6	170	910
	36-43	21-36
18 FL/56	60-70	50-60	18	56	6	195	980
	43-50	36-43
20 FL/56	70-80	60-70	20	56	6	220	1070
	50-57	43-50
22 FL/56	80-90	70-80	22	56	8	240	1180
	57-64	50-57
24 FL/56	90-100	80-90	24	56	8	260	1270
	64-71	57-64

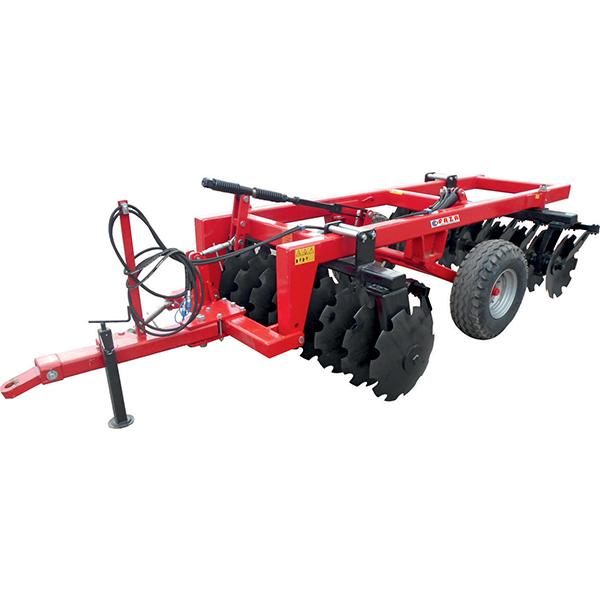

Mod.	HP	HP	Nr.	Diam. (cm)	Nr.	Largh. (cm)	Largh. (cm)	Peso (Kg)
18 FCLH/61	60-70	50-60	18	61	4	205	205	1240
	43-50	36-43
20 FCLH/61	70-80	60-70	20	61	6	230	230	1300
	50-57	43-50
22 FCLH/61	80-90	70-80	22	61	8	255	255	1400
	57-64	50-57
24 FCLH/61	90-100	80-90	24	61	8	280	280	1480
	64-71	57-64
26 FCLH/61	100-130	90-110	26	61	8	305	305	1650
	71-93	64-71
28 FCLH/61	130-160	100-120	28	61	8	330	330	1750
	93-114	71-86
28 FCLH/61 RH*	140-180	110-140	28	61	16	250	330	2500
	103-132	79-103
32 FCLH/61 RH*	160-200	140-160	32	61	16	250	380	2650
	118-147	103-114

Mod.	HP	HP	Nr.	Diam. (cm)	Nr.	Largh. (cm)	Largh. (cm)	Peso (Kg)
20 FCMH/61	90	80	20	61	6	230	230	1440
	64	57
22 FCMH/61	100	90	22	61	8	255	255	1580
	71	64
24 FCMH/61	110	100	24	61	8	280	280	1620
	79	71
26 FCMH/61	120	110	26	61	8	305	305	1870
	86	79
28 FCMH/61	140	130	28	61	8	330	330	1980
	100	93
28 FCMH/61 RH*	140	130	28	61	16	250	330	3100
	100	93
32 FCMH/61 RH*	160	140	32	61	16	250	355	3250
	114	100
36 FCMH/61 RH*	180	170	36	61	16	250	380	3500
	120	121
